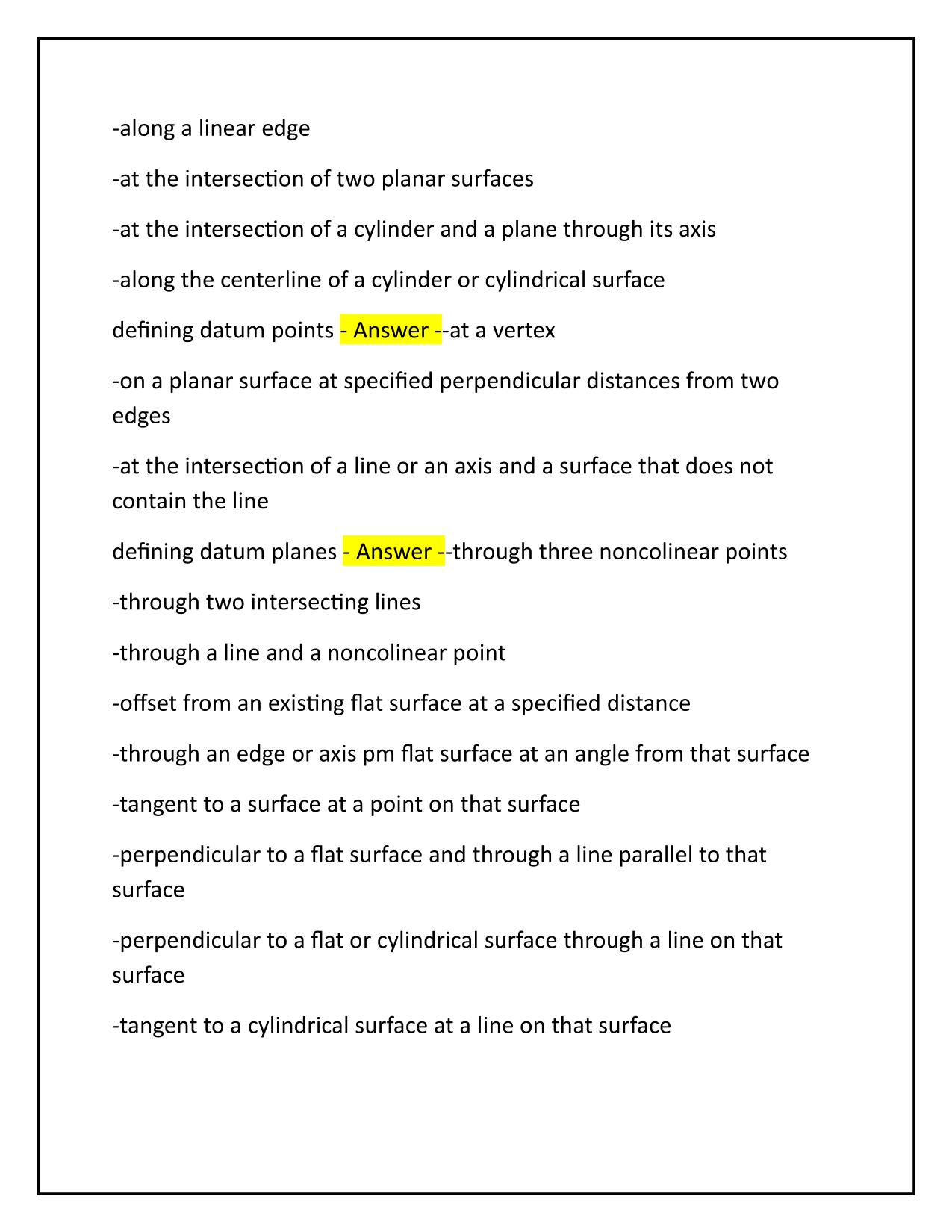

MAE 1351 EXAM 1 | Q&A Latest 2025/2026 | 100% PASS The engineering design process follows the same steps as the scientific discovery process, or scientific method? True? - Answer -No, there are major differences Descriptive geometry is described in the book and video lecture in relation to: - Answer -Geometry as a means of computation and analysis An engineering drawing can be considered a legally binding document. True? - Answer -YES The term IPS in SolidWorks refers to - Answer -measurement units To create an extrusion i must first draw a sketch on a surface. True? Answer -Yes but the surface must be flat To create a revolved feature, the profile and the axis of revolution must be coplanar. True? - Answer -Yes To create a solid revolution i must - Answer -Select a plain line from the sketch to use as an axis Make an axis in the sketch using a construction line Use reference geometry to make an axis How do you define datum axes - Answer --between two points or vertices
